Garvee Ballast Box for Tractors 800LB Capacity 5 cu.ft 3 Point Hitch Weight Box Green
C$366.99
| Specification | Details |
|---|---|
| Brand | GARVEE |
| Vehicle Compatibility | 3 Point Category 1 Tractors |
| Capacity | 5 Cubic Feet |
| Dimensions (LxWxH) | 27.56 x 25.59 x 20.08 inches |
| Item Weight (Empty) | 78.3 pounds |
| Material & Finish | Alloy Steel with Green Powder Coating |
| Special Features | Portable, Sliding Front Door |
| Color | Green |
Garvee Ballast Box for Tractors 800LB Capacity 5 cu.ft 3 Point Hitch Weight Box Green

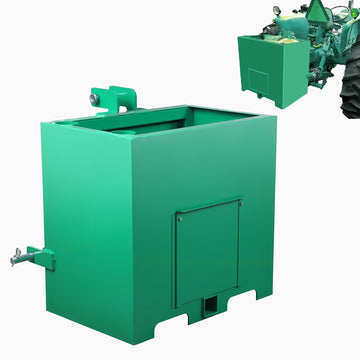

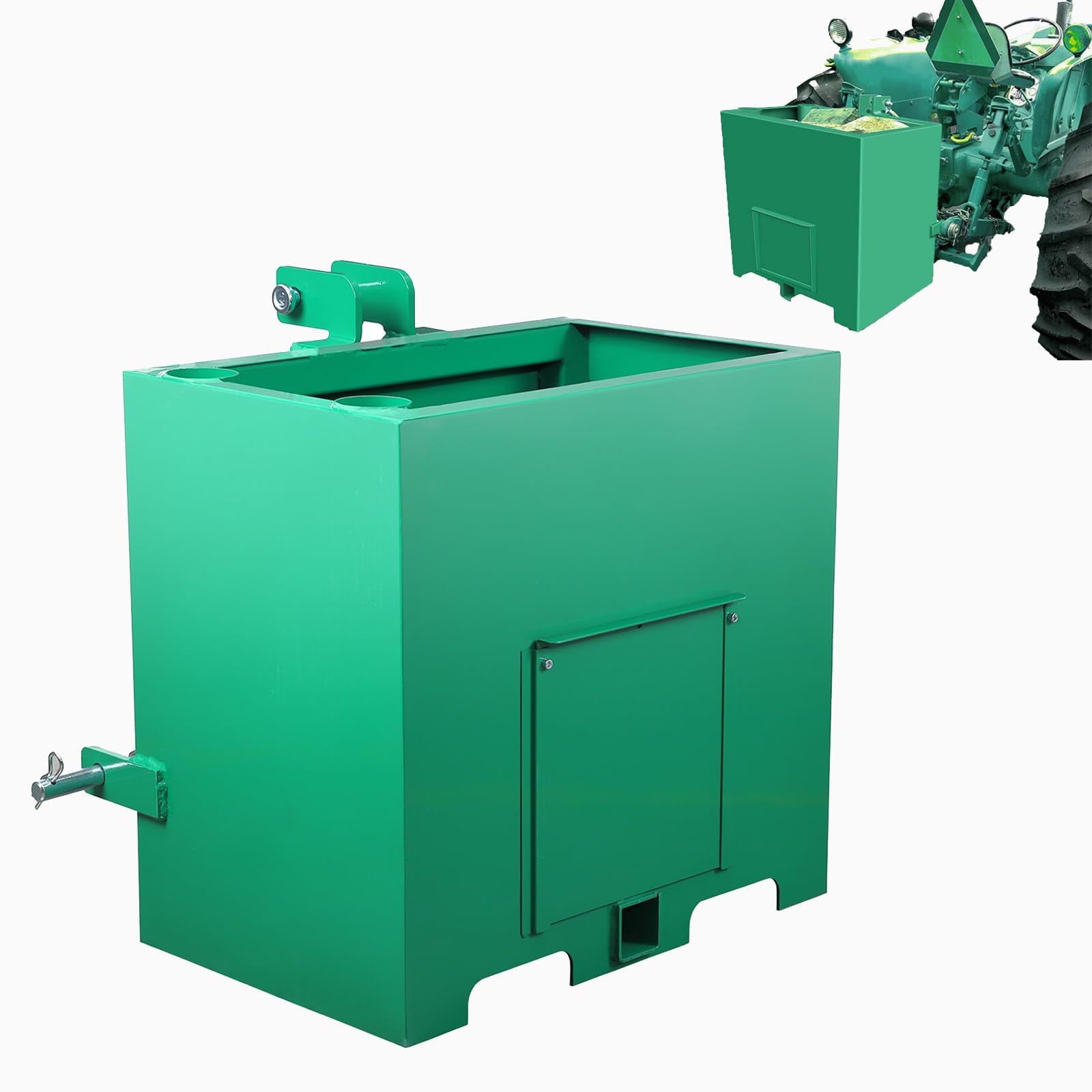

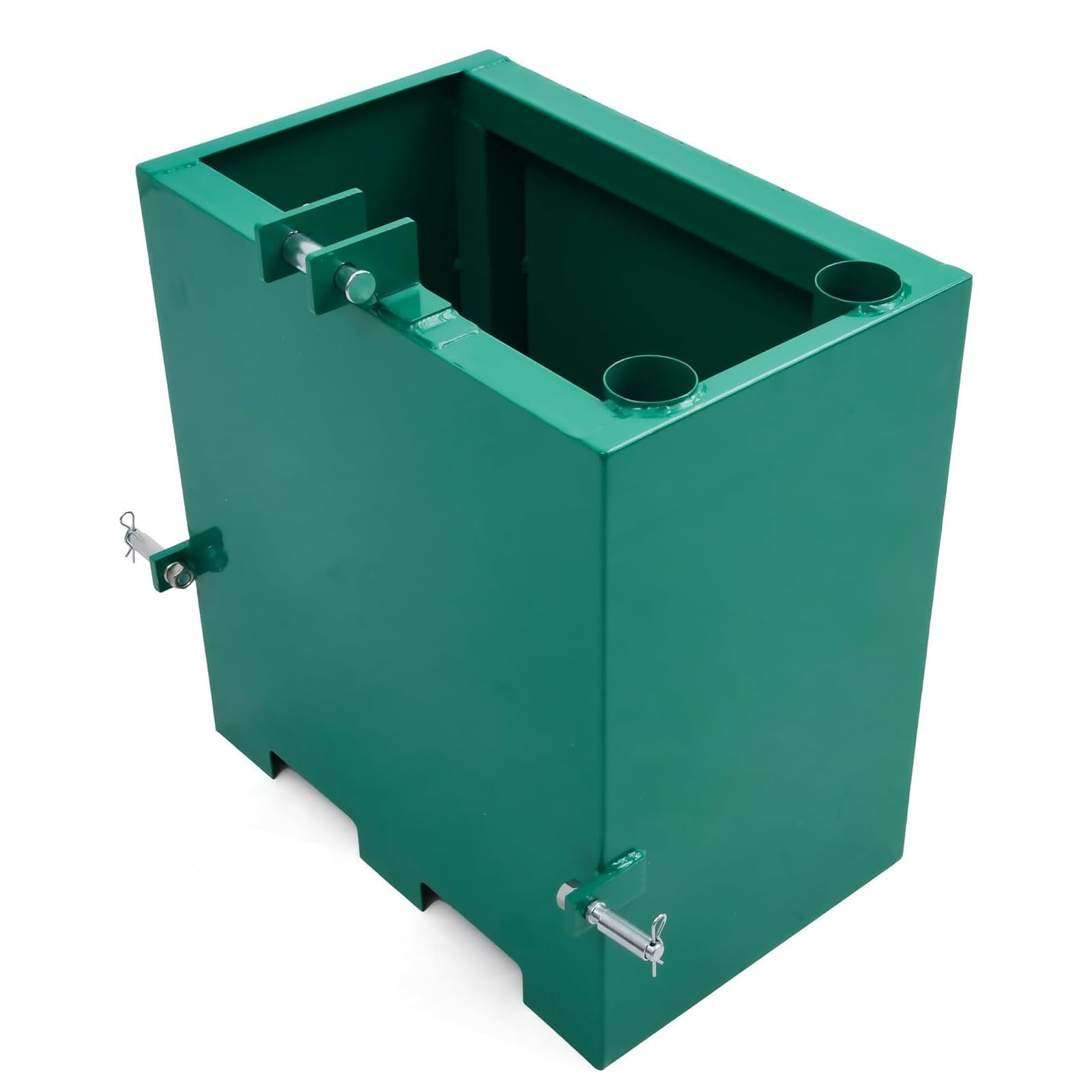

Garvee 3-Point Ballast Box for Category 1 Tractor, 800 lbs Capacity
Benefits
- 800 lbs capacity
- 5 cubic feet storage
- Sliding front door
- 2" hitch receiver

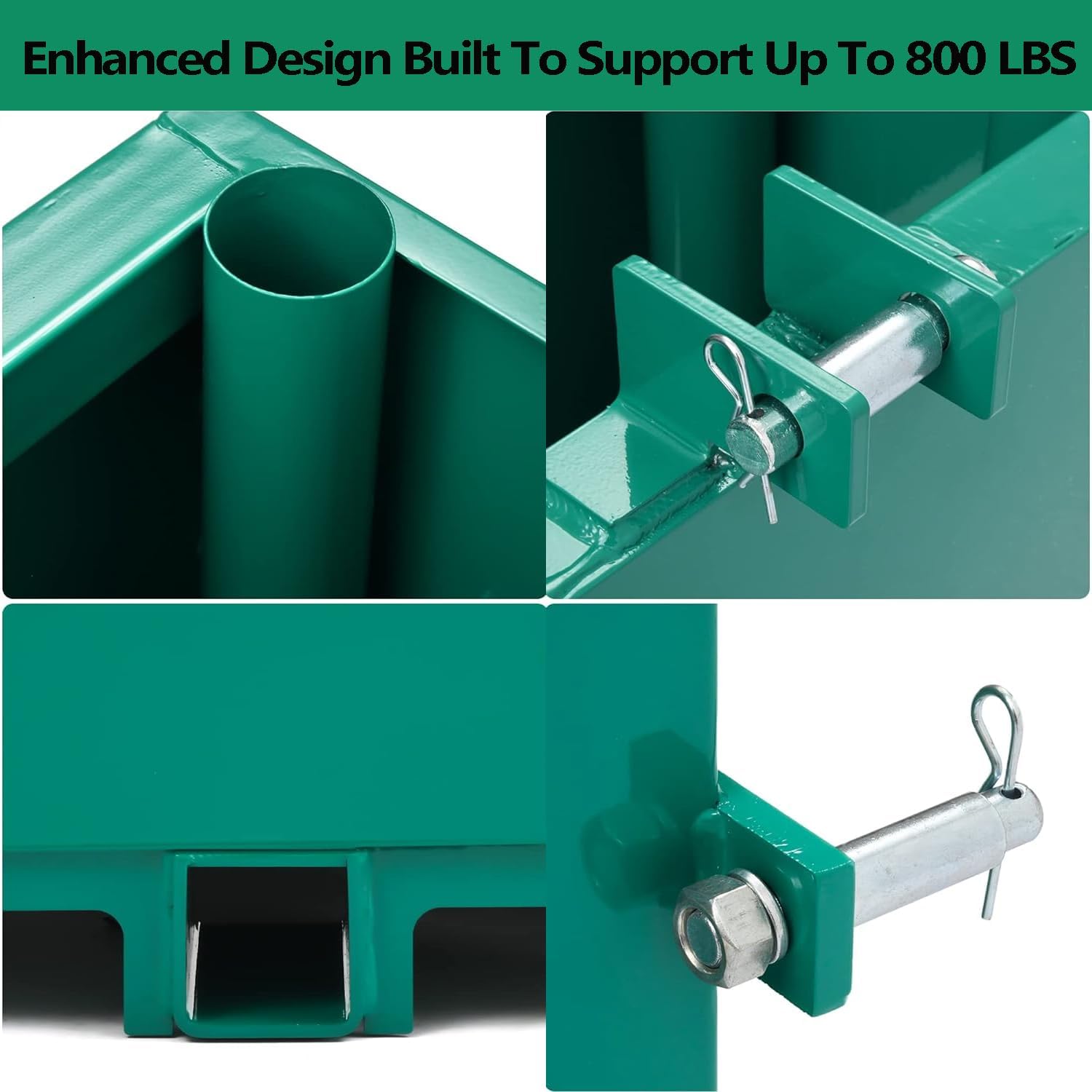

Heavy-Duty Steel Construction
Heavy-Duty Steel Construction
Built from heavy-duty alloy steel with a durable powder-coated green finish, this 3-point ballast box is designed for rugged farm use. The robust construction ensures long-lasting performance, resisting rust, corrosion, and outdoor wear for years of reliable service under demanding conditions.
800 lbs Ballast Capacity
800 lbs Ballast Capacity for Enhanced Stability

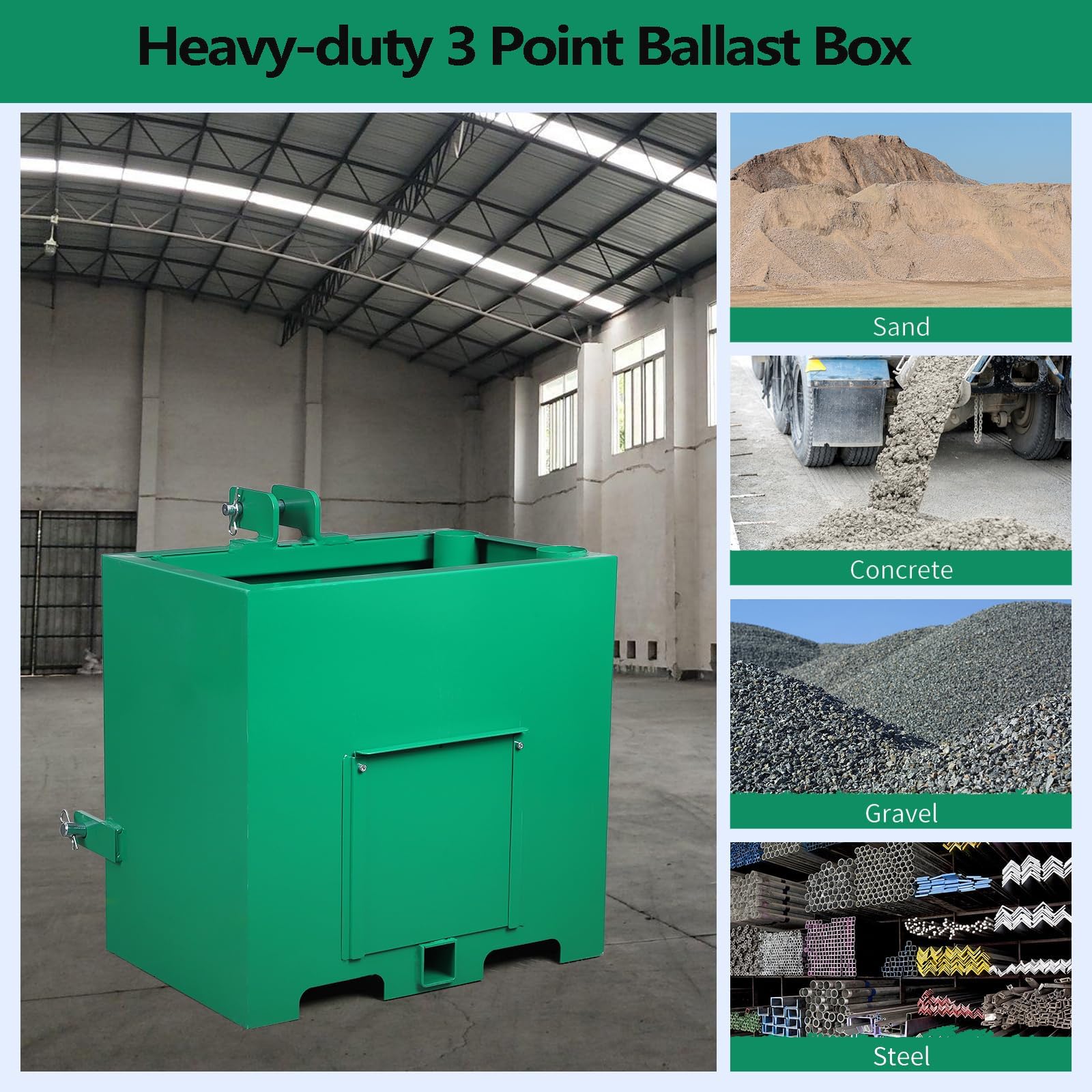

Fill with up to 800 pounds of material—such as sand, gravel, concrete, or steel—to significantly improve tractor stability and traction. By shifting weight toward the rear axle, this ballast box protects the front axle from excessive stress and reduces the risk of tipping during loader operations.
Sliding Front Door for Easy Access

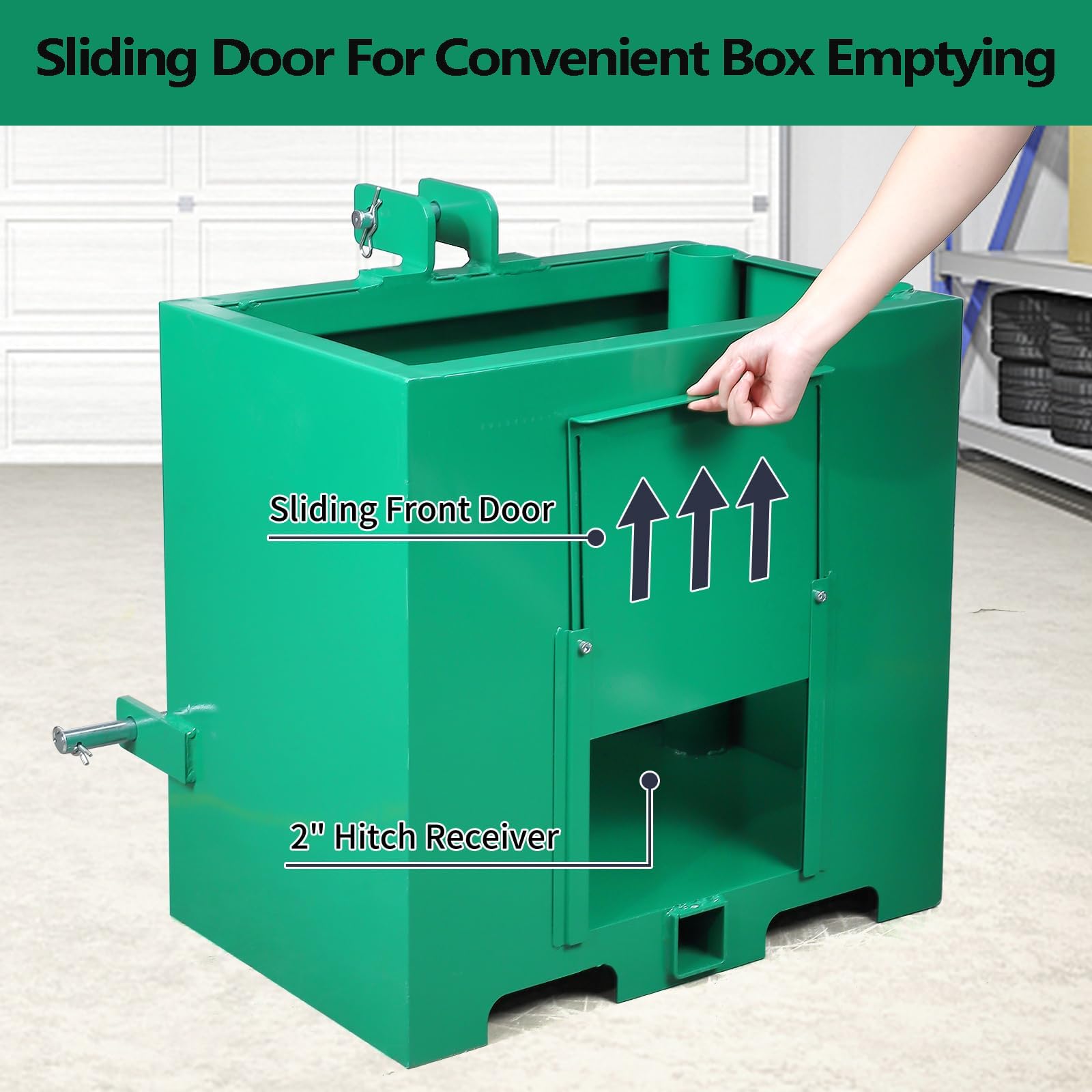

Sliding Front Door for Easy Access & Quick Emptying
The sliding front door provides convenient full-width access to the weight compartment, making it easy to add or remove ballast material. When you need to lighten the load for transport or road travel, simply open the sliding door to quickly empty the box without hassle.
2" Hitch Receiver & Universal Fit
2" Hitch Receiver & Universal Category 1 Fit

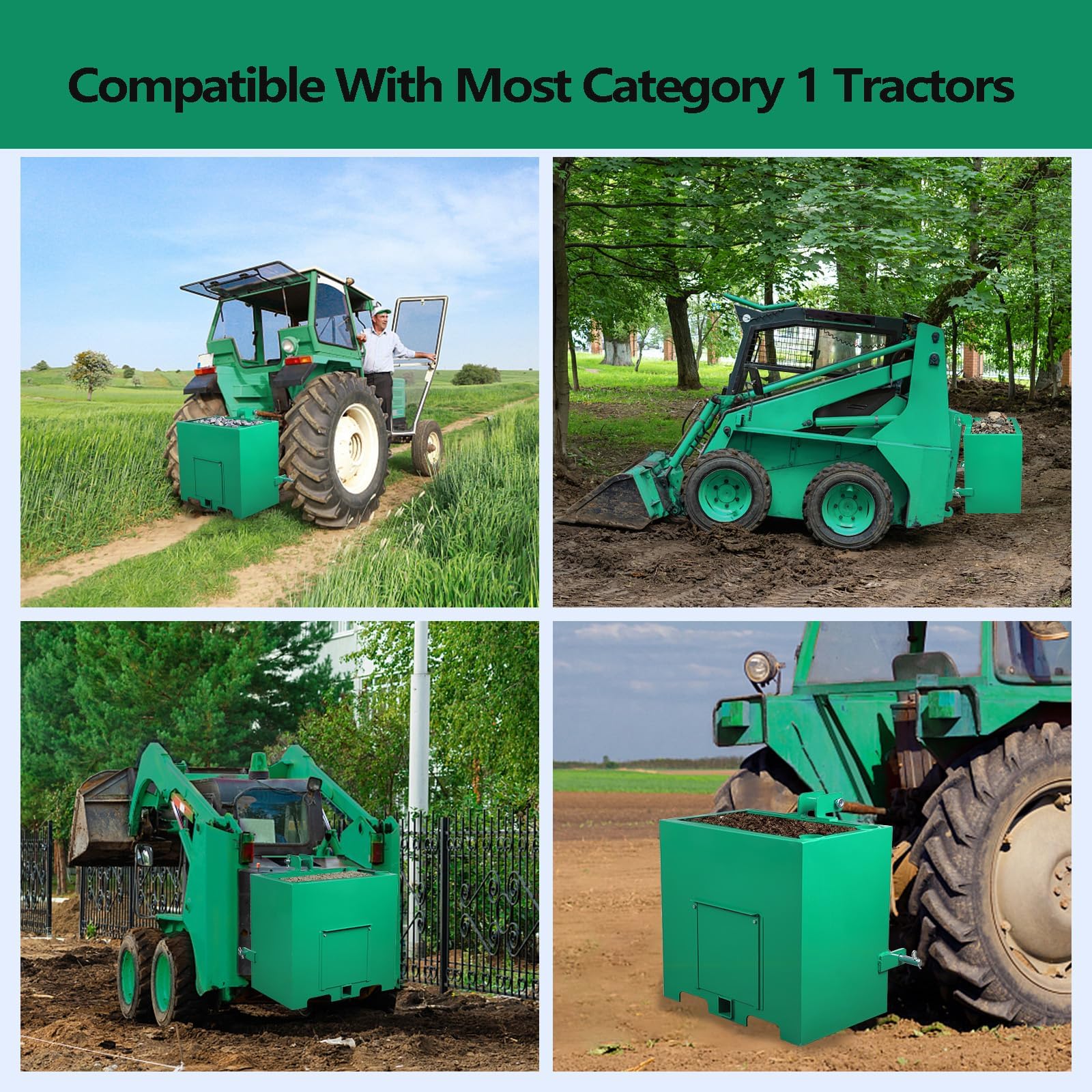

Equipped with a standard 2-inch hitch receiver, this ballast box works seamlessly with most Category 1 tractors. The 3-point hitch design with anti-loss pins ensures quick attachment and secure operation, while the compact dimensions allow easy storage when not in use.
Specifications
| Brand | Garvee |
| Capacity | 800 lbs |
| Storage Volume | 5 cu. ft |
| Material | Alloy steel |
| Finish | Powder coated |
| Color | Green |

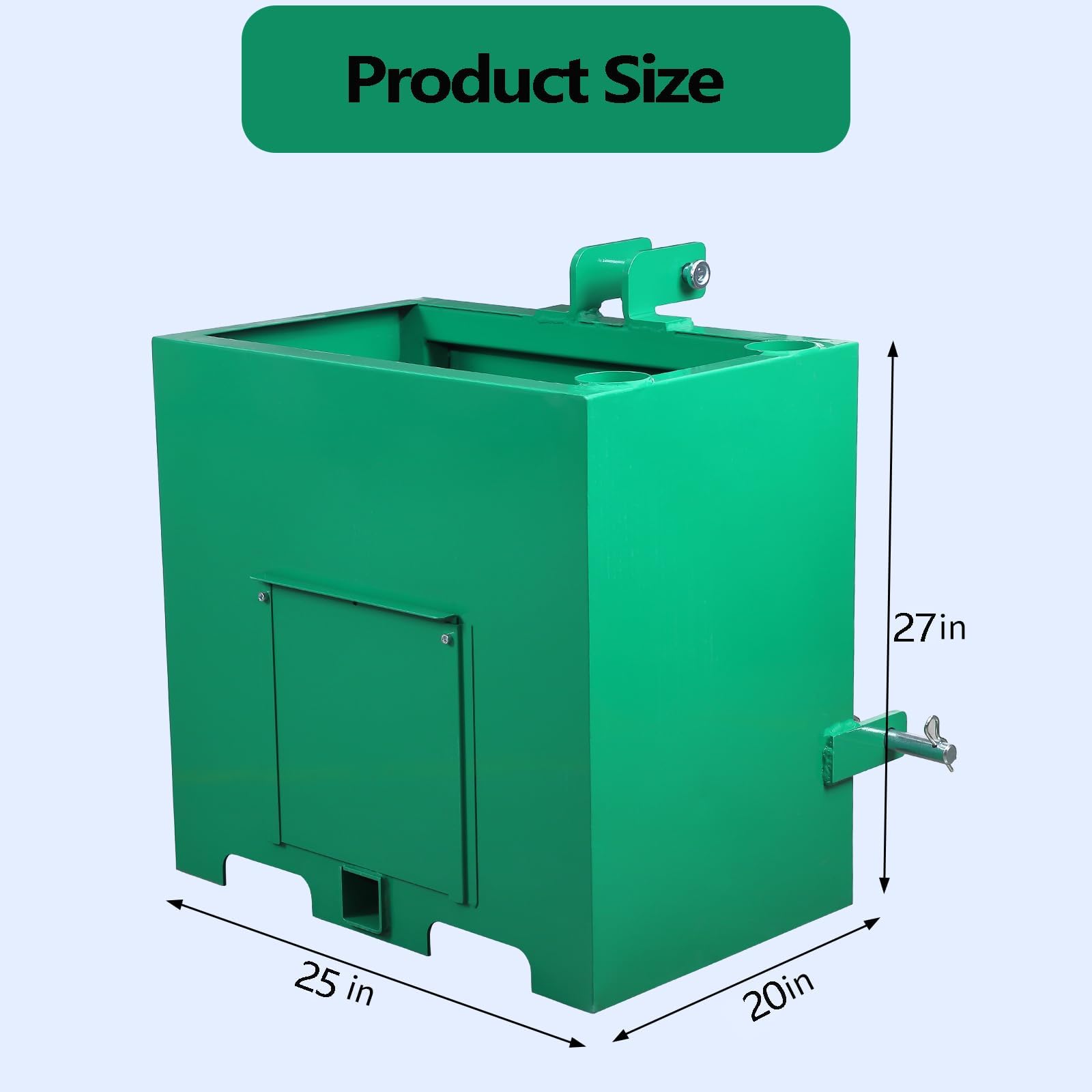

| Product Dimensions | 27.56 x 25.59 x 20.08 in |
| Item Weight | 78.3 lbs |
- ✅ Engineered Stability: Advantage 26" low-center design with 23"L x 15"W reinforced base optimizes weight distribution for loader operations. Cross-braced 3mm steel frame maintains stability on slopes up to 15 degrees while supporting 800 lbs capacity.
- ✅ Professional-Grade Construction: Commercial-duty 3mm steel walls with internal reinforcement ribs withstand heavy farm use. Double-welded stress points and gusset reinforcements prevent fatigue. Industrial powder coating resists abrasion, chemicals, and UV damage.
- ✅ Sliding Door Convenience: Heavy-duty sliding door system provides full-width access to weight compartment. Smooth-operating track mechanism functions reliably even when exposed to dirt and debris.
- ✅ Precision Weight Adjustment: Three-position removable rack allows fine-tuning balance for different implements. Secures standard 17.75" weight plates (not included) with locking pins. Open-frame design enables visual weight verification. Dual drainage holes prevent liquid accumulation.
- ✅ Enhanced Operational Safety: Universal hitch accepts CAT 0/1/2/3 implements using included 19mm and 28mm pins. Auto-rotating PTO guard protects during attachment/detachment. Deburred edges and safety-orange powder coat improve visibility and reduce injury risks.
